Selected equipment
medical_pump

IPN 56

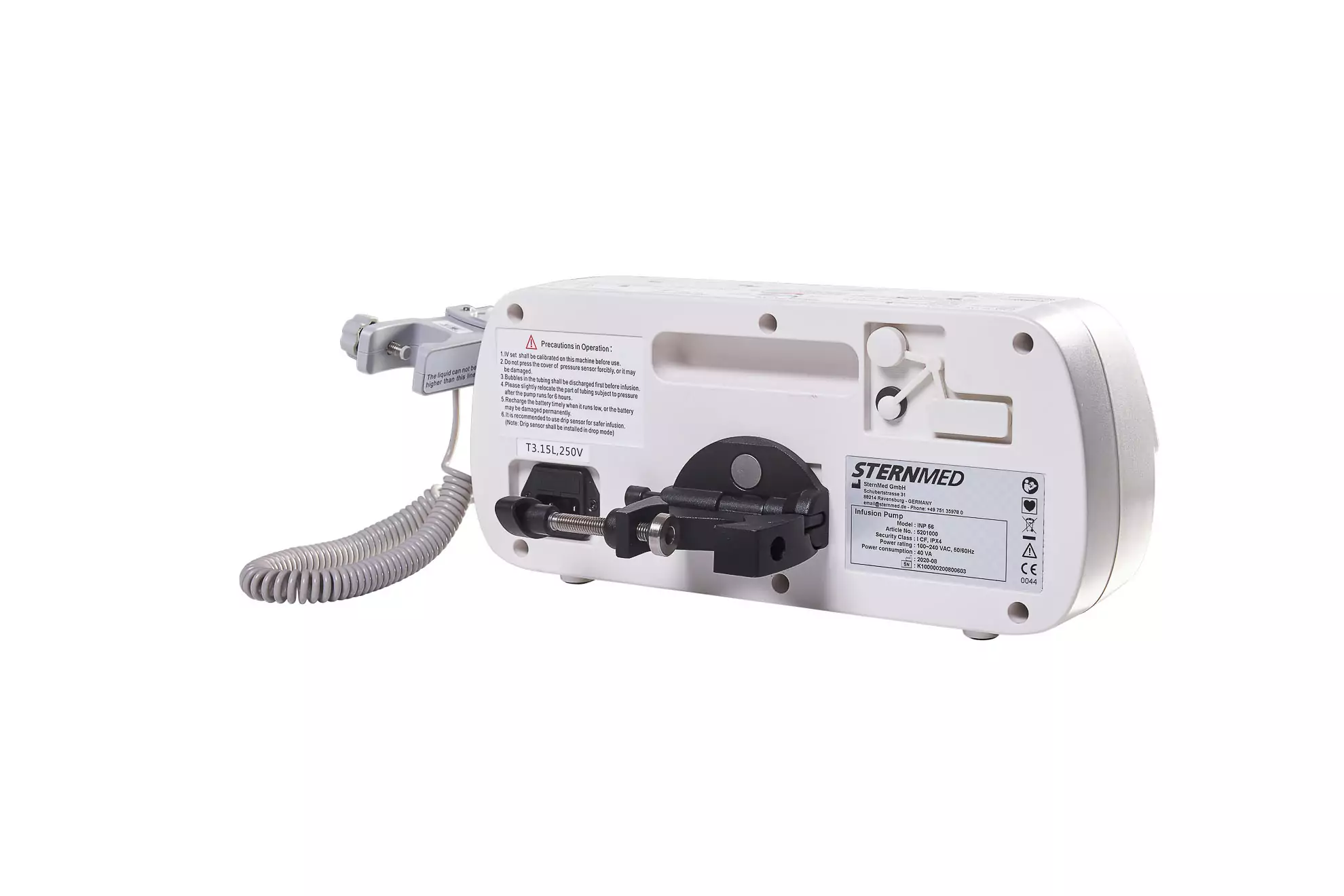

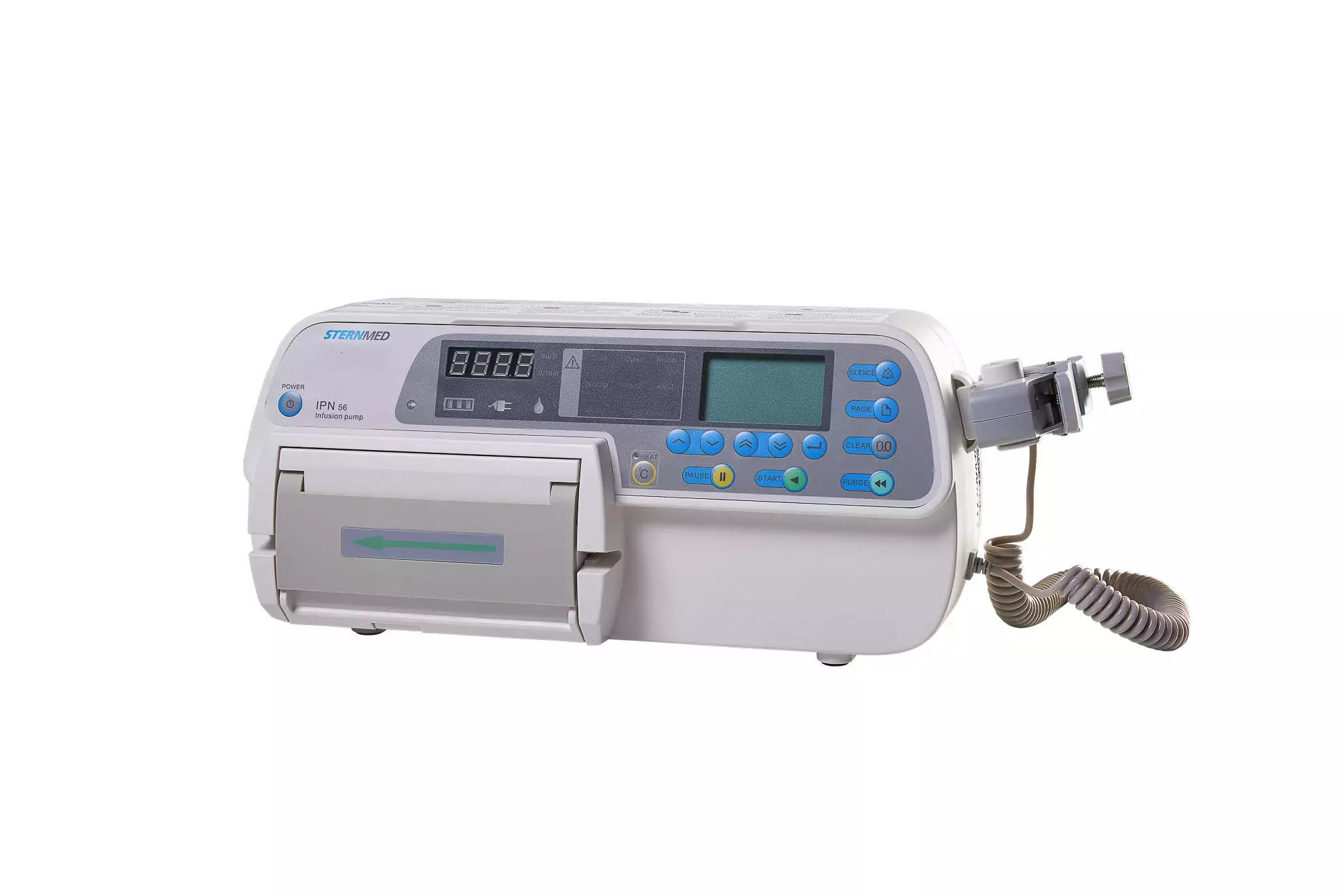

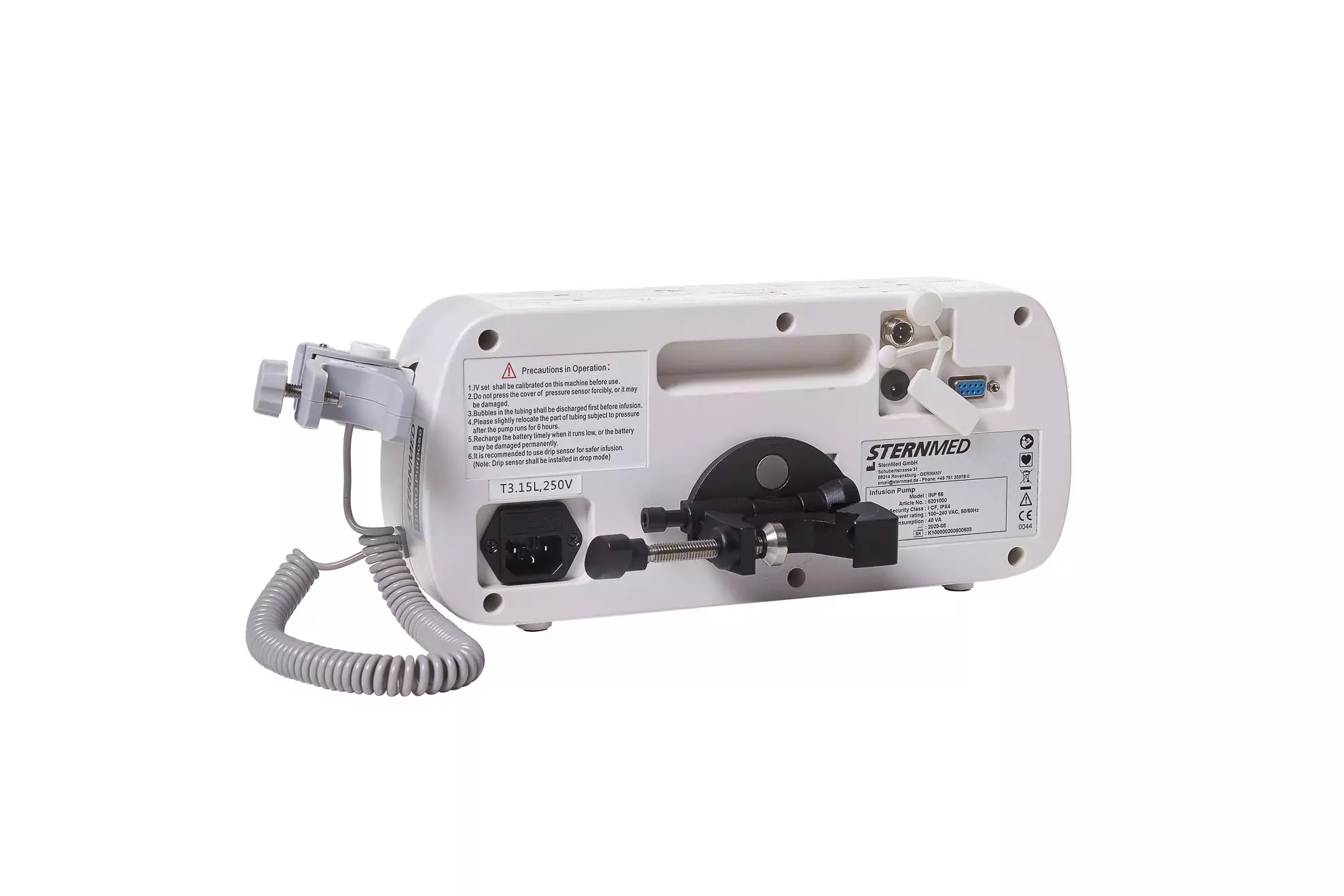

IPN 56 is an infusion pump with a horizontal design, which effectively prevents drug liquid leakage into the pump. It features a tube heating option and is designed for emergency, anesthesia, and drug delivery applications.

Product Details

Manufacturer
SternMed
Model
IPN 56

Delivery

standard

Contact Sales
Certified & Quality Guaranteed

Equipment Specifications

Infusion Rates

Infusion Rate Range0.1 ~ 1500 ml/h
Bolus Rate Range600 ~ 1000 ml/h
KVO Rate Range0.1 ~ 5.0 ml/h

Physical Specifications

Weight2.35 kg (with clamp base)
Dimensions (WxHxD)308 mm x 140 mm x 144 mm

Power & Battery

Power SupplyAC 110-230V, 50-60 Hz
Battery Operation~6 hours at 25 ml/h
Internal BatteryDC 12V, 2300 mAh

Technical Features

Bubble DetectionUltrasonic, 25 µl sensitivity
Infusion ModesSpeed (ml/h), Drip, Time, Weight
Water ResistanceIPX4
History Records1500 entries

Key Features & Benefits

Discover the standout features that make this equipment exceptional

Horizontal design to prevent liquid leakage

Tube heating function

Dual-CPU monitoring function

Ultrasonic bubble detection

Body-weight mode conversion

Multi-direction clamp for horizontal or vertical fixation

3-level occlusion alarm limits

KVO function

Wireless communication function

Waterproof (IPX4)

Smart pulsation compensation

1500 history records
